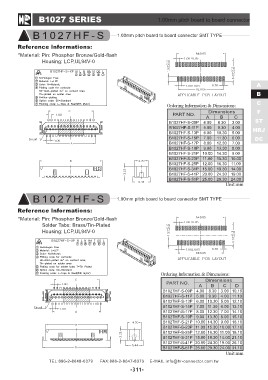

B1027 SERIES 1.00mm pitch board to board connector

B1027HF-S 1.00mm pitch board to board connector SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-flash
Housing: LCP,UL94V-0

Ordering Information & Dimensions: A
B
PART NO. Dimensions C
ABC F
ST
B1027HF-S-09P 4.00 8.30 3.00 HRJ
DC
B1027HF-S-11P 5.00 9.30 4.00
B1027HF-S-13P 6.00 10.30 5.00

B1027HF-S-15P 7.00 11.30 6.00
B1027HF-S-17P 8.00 12.30 7.00

B1027HF-S-19P 9.00 13.30 8.00
B1027HF-S-21P 10.00 14.30 9.00

B1027HF-S-23P 11.00 15.30 10.00
B1027HF-S-25P 12.00 16.30 11.00

B1027HF-S-31P 15.00 19.30 14.00
B1027HF-S-41P 20.00 24.30 19.00

B1027HF-S-51P 25.00 29.30 24.00

Unit:mm

B1027HF-S 1.00mm pitch board to board connector SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-flash
Solder Tabs: Brass/Tin-Plated
Housing: LCP,UL94V-0

Ordering Information & Dimensions:

PART NO. Dimensions
ABCD

B1027HF-S-09P 4.00 8.30 3.00 10.10

B1027HF-S-11P 5.00 9.30 4.00 11.10

B1027HF-S-13P 6.00 10.30 5.00 12.10

B1027HF-S-15P 7.00 11.30 6.00 13.10

B1027HF-S-17P 8.00 12.30 7.00 14.10

B1027HF-S-19P 9.00 13.30 8.00 15.10

B1027HF-S-21P 10.00 14.30 9.00 16.10

B1027HF-S-23P 11.00 15.30 10.00 17.10

B1027HF-S-25P 12.00 16.30 11.00 18.10

B1027HF-S-31P 15.00 19.30 14.00 21.10

B1027HF-S-41P 20.00 24.30 19.00 26.10

B1027HF-S-51P 25.00 29.30 24.00 31.10

Unit:mm
