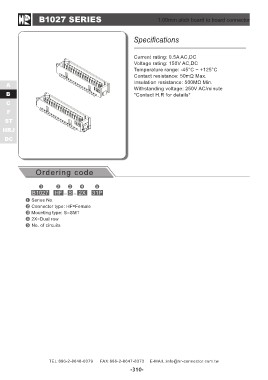

B1027 SERIES 1.00mm pitch board to board connector

A Specifications
B
C Current rating: 0.5A AC,DC
F Voltage rating: 150V AC,DC
ST Temperature range: -45°C ~ +125°C
HRJ Contact resistance: 50mΩ Max.
DC Insulation resistance: 500MΩ Min.
Withstanding voltage: 250V AC/minute
Ordering code *Contact H.R for details*

B1027 HF - S - 2X 31P

Series No.
Connector type: HF=Female
Mounting type: S=SMT
2X=Dual row
No. of circuits
