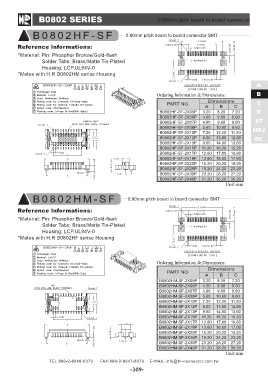

B0802 SERIES 0.80mm pitch board to board connector

B0802HF-SF 0.80mm pitch board to board connector SMT

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-flash
Solder Tabs: Brass/Matte Tin-Plated
Housing: LCP,UL94V-0

*Mates with H.R B0802HM serise Housing

Ordering Information & Dimensions: A
B
PART NO. Dimensions C
ABC F
ST
B0802HF-SF-2X05P 3.20 8.20 7.20 HRJ
DC
B0802HF-SF-2X06P 4.00 9.00 8.00

B0802HF-SF-2X07P 4.80 9.80 8.80

B0802HF-SF-2X08P 5.60 10.60 9.60

B0802HF-SF-2X10P 7.20 12.20 11.20

B0802HF-SF-2X12P 8.00 13.80 12.80

B0802HF-SF-2X13P 9.60 14.60 13.60

B0802HF-SF-2X15P 11.20 16.20 15.20

B0802HF-SF-2X17P 12.80 17.80 16.80

B0802HF-SF-2X18P 13.60 18.60 17.60

B0802HF-SF-2X20P 15.20 20.20 19.20

B0802HF-SF-2X25P 19.20 24.20 23.20

B0802HF-SF-2X30P 23.20 28.20 27.20

B0802HF-SF-2X40P 31.20 36.20 35.20

Unit:mm

B0802HM-SF 0.80mm pitch board to board connector SMT

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-flash
Solder Tabs: Brass/Matte Tin-Plated
Housing: LCP,UL94V-0

*Mates with H.R B0802HF serise Housing

Ordering Information & Dimensions:

PART NO. Dimensions
ABC

B0802HM-SF-2X05P 3.20 8.20 7.20
B0802HM-SF-2X06P 4.00 9.00 8.00
B0802HM-SF-2X07P 4.80 9.80 8.80
B0802HM-SF-2X08P 5.60 10.60 9.60
B0802HM-SF-2X10P 7.20 12.20 11.20
B0802HM-SF-2X12P 8.00 13.80 12.80
B0802HM-SF-2X13P 9.60 14.60 13.60
B0802HM-SF-2X15P 11.20 16.20 15.20
B0802HM-SF-2X17P 12.80 17.80 16.80
B0802HM-SF-2X18P 13.60 18.60 17.60
B0802HM-SF-2X20P 15.20 20.20 19.20
B0802HM-SF-2X25P 19.20 24.20 23.20
B0802HM-SF-2X30P 23.20 28.20 27.20
B0802HM-SF-2X40P 31.20 36.20 35.20

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
