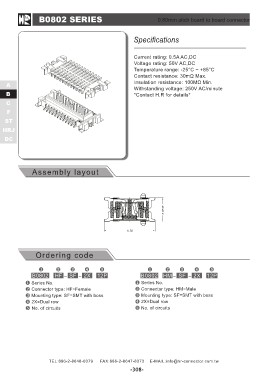

B0802 SERIES                     0.80mm pitch board to board connector

  A                              Specifications
  B
  C                              Current rating: 0.5A AC,DC
  F                              Voltage rating: 50V AC,DC
 ST                              Temperature range: -25°C ~ +85°C
HRJ                              Contact resistance: 30mΩ Max.
 DC                              Insulation resistance: 100MΩ Min.
                                 Withstanding voltage: 250V AC/minute
           Assembly layout       *Contact H.R for details*

 Ordering code                   B0802 HM - SF - 2X 12P

B0802 HF - SF - 2X 12P           Series No.
                                 Connector type: HM=Male
Series No.                       Mounting type: SF=SMT with boss
Connector type: HF=Female        2X=Dual row
Mounting type: SF=SMT with boss  No. of circuits
2X=Dual row
No. of circuits

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
