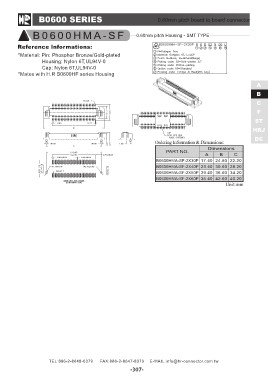

B0600 SERIES 0.60mm pitch board to board connector
B0600HMA-SF 0.60mm pitch Housing - SMT TYPE
Reference lnformations:
*Material: Pin: Phosphor Bronze/Gold-plated
Housing: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0
*Mates with H.R B0600HF series Housing
Ordering Information & Dimensions: A
B
C
F
ST
HRJ
DC
PART NO. Dimensions
ABC
B0600HMA-SF-2X30P 17.40 24.60 22.20
B0600HMA-SF-2X40P 23.40 30.60 28.20
B0600HMA-SF-2X50P 29.40 36.60 34.20
B0600HMA-SF-2X60P 35.40 42.60 40.20
Unit:mm
