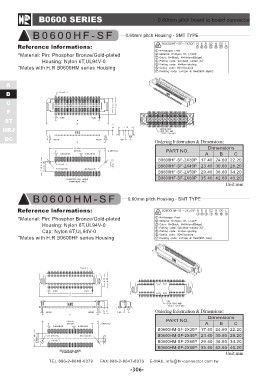

B0600 SERIES 0.60mm pitch board to board connector

B0600HF-SF 0.60mm pitch Housing - SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-plated
Housing: Nylon 6T,UL94V-0

*Mates with H.R B0600HM series Housing

A Ordering Information & Dimensions:
B
C
F
ST
HRJ
DC

PART NO. Dimensions
ABC

B0600HF-SF-2X30P 17.40 24.60 22.20

B0600HF-SF-2X40P 23.40 30.60 28.20

B0600HF-SF-2X50P 29.40 36.60 34.20

B0600HF-SF-2X60P 35.40 42.60 40.20

Unit:mm

B0600HM-SF 0.60mm pitch Housing - SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-plated
Housing: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0

*Mates with H.R B0600HF series Housing

Ordering Information & Dimensions:

PART NO. Dimensions
ABC

B0600HM-SF-2X30P 17.40 24.60 22.20

B0600HM-SF-2X40P 23.40 30.60 28.20

B0600HM-SF-2X50P 29.40 36.60 34.20

B0600HM-SF-2X60P 35.40 42.60 40.20

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-306-
