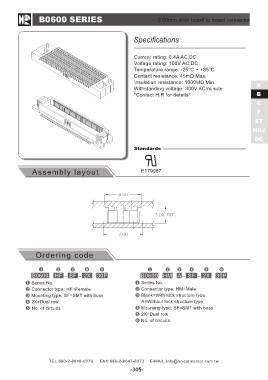

B0600 SERIES                   0.60mm pitch board to board connector
Assembly layout
                                 Specifications

                                 Current rating: 0.4A AC,DC                 A
                                 Voltage rating: 100V AC,DC                 B
                                 Temperature range: -25°C ~ +85°C           C
                                 Contact resistance: 45mΩ Max.              F
                                 Insulation resistance: 1000MΩ Min.        ST
                                 Withstanding voltage: 300V AC/minute     HRJ
                                 *Contact H.R for details*                 DC

                                 Standards

                                 E179987

 Ordering code                   B0600 HM A - SF - 2X 30P

B0600 HF - SF - 2X 30P           Series No.
                                 Connector type: HM=Male
Series No.                       Blank=With lock structure type
Connector type: HF=Female        A=Without lock structure type
Mounting type: SF=SMT with boss  Mounting type: SF=SMT with boss
2X=Dual row                      2X=Dual row
No. of circuits                  No. of circuits

TEL:886-2-8648-0379  FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
