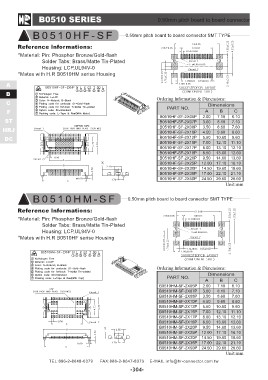

B0510 SERIES 0.50mm pitch board to board connector

B0510HF-SF 0.50mm pitch board to board connector SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-flash
Solder Tabs: Brass/Matte Tin-Plated
Housing: LCP,UL94V-0

*Mates with H.R B0510HM serise Housing

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F ABC
ST
HRJ B0510HF-SF-2X05P 2.00 7.10 6.10
DC B0510HF-SF-2X07P 3.00 8.10 7.10

B0510HF-SF-2X08P 3.50 8.60 7.60
B0510HF-SF-2X10P 4.50 9.60 8.60

B0510HF-SF-2X12P 5.50 10.60 9.60
B0510HF-SF-2X15P 7.00 12.10 11.10

B0510HF-SF-2X17P 8.00 13.10 12.10
B0510HF-SF-2X18P 8.50 13.60 12.60

B0510HF-SF-2X20P 9.50 14.60 13.60
B0510HF-SF-2X25P 12.00 17.10 16.10

B0510HF-SF-2X30P 14.50 19.60 18.60
B0510HF-SF-2X35P 17.00 22.10 21.10

B0510HF-SF-2X50P 24.50 29.60 28.60

Unit:mm

B0510HM-SF 0.50mm pitch board to board connector SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Gold-flash
Solder Tabs: Brass/Matte Tin-Plated
Housing: LCP,UL94V-0

*Mates with H.R B0510HF serise Housing

Ordering Information & Dimensions:

PART NO. Dimensions
ABC

B0510HM-SF-2X05P 2.00 7.10 6.10

B0510HM-SF-2X07P 3.00 8.10 7.10
B0510HM-SF-2X08P 3.50 8.60 7.60

B0510HM-SF-2X10P 4.50 9.60 8.60
B0510HM-SF-2X12P 5.50 10.60 9.60

B0510HM-SF-2X15P 7.00 12.10 11.10
B0510HM-SF-2X17P 8.00 13.10 12.10

B0510HM-SF-2X18P 8.50 13.60 12.60
B0510HM-SF-2X20P 9.50 14.60 13.60

B0510HM-SF-2X25P 12.00 17.10 16.10
B0510HM-SF-2X30P 14.50 19.60 18.60

B0510HM-SF-2X35P 17.00 22.10 21.10
B0510HM-SF-2X50P 24.50 29.60 28.60

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
