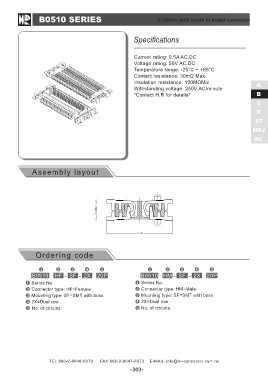

B0510 SERIES                   0.50mm pitch board to board connector
Assembly layout
                                 Specifications

                                 Current rating: 0.5A AC,DC                 A
                                 Voltage rating: 50V AC,DC                  B
                                 Temperature range: -25°C ~ +85°C           C
                                 Contact resistance: 30mΩ Max.              F
                                 Insulation resistance: 100MΩMin.          ST
                                 Withstanding voltage: 250V AC/minute     HRJ
                                 *Contact H.R for details*                 DC

 Ordering code                   B0510 HM - SF - 2X 20P

B0510 HF - SF - 2X 20P           Series No.
                                 Connector type: HM=Male
Series No.                       Mounting type: SF=SMT with boss
Connector type: HF=Female        2X=Dual row
Mounting type: SF=SMT with boss  No. of circuits
2X=Dual row
No. of circuits
