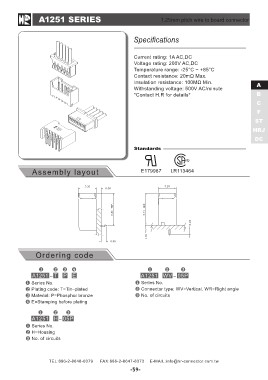

A1251 SERIES               1.25mm pitch wire to board connector
Assembly layout
                             Specifications

                             Current rating: 1A AC,DC                               A
                             Voltage rating: 200V AC,DC                             B
                             Temperature range: -25°C ~ +85°C                       C
                             Contact resistance: 20mΩ Max.                          F
                             Insulation resistance: 100MΩ Min.                     ST
                             Withstanding voltage: 500V AC/minute                 HRJ
                             *Contact H.R for details*                             DC

                             Standards

                             E179987               ®

                                        LR113464

 Ordering code               A1251 WV - 05P

A1251 - T P E                Series No.
                             Connector type: WV=Vertical, WR=Right angle
Series No.                   No. of circuits
Plating code: T=Tin–plated
Material: P=Phosphor bronze
E=Stamping before plating

A1251 H - 05P

Series No.
H=Housing
No. of circuits
