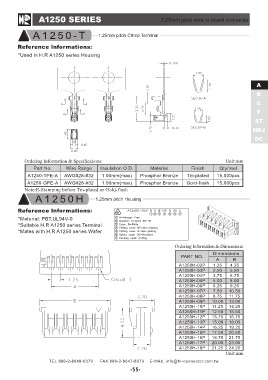

A1250 SERIES 1.25mm pitch wire to board connector

A1250-T 1.25mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1250 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Tin-plated 15,000pcs
A1250-TPE-A AWG#28-#32 1.00mm(max) Phosphor Bronze Gold-flash

A1250-GPE-A AWG#28-#32 1.00mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated or Gold-flash

A 1 2 5 0 H 1.25mm pitch Housing

Reference lnformations:

*Material: PBT,UL94V-0
*Suitable H.R A1250 series Terminal
*Mates with H.R A1250 series Wafer

Ordering Information & Dimensions:

PART NO. Dimensions

A1250H-02P AB
A1250H-03P
A1250H-04P 1.25 4.25
A1250H-05P 2.50 5.50
A1250H-06P 3.75 6.75
A1250H-07P 5.00 8.00
A1250H-08P 6.25 9.25
A1250H-09P 7.50 10.50
A1250H-10P 8.75 11.75
A1250H-11P 10.00 13.00
A1250H-12P 11.25 14.25
A1250H-13P 12.50 15.50
A1250H-14P 13.75 16.75
A1250H-15P 15.00 18.00
A1250H-16P 16.25 19.25
A1250H-17P 17.50 20.50
A1250H-18P 18.75 21.75
20.00 23.00
21.25 24.25

Unit:mm
