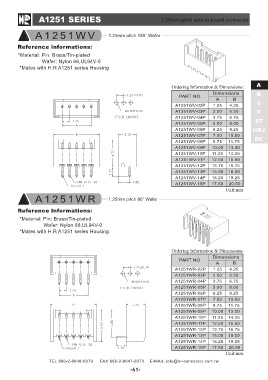

Page 77 - JOINT TECH

A1251 SERIES 1.25mm pitch wire to board connector

A1251WV 1.25mm pitch 180˚ Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Mates with H.R A1251 series Housing

Ordering Information & Dimensions: A
B
PART NO. Dimensions C
AB F
ST
A1251WV-02P 1.25 4.25 HRJ
DC
A1251WV-03P 2.50 5.50

A1251WV-04P 3.75 6.75

A1251WV-05P 5.00 8.00

A1251WV-06P 6.25 9.25

A1251WV-07P 7.50 10.50

A1251WV-08P 8.75 11.75

A1251WV-09P 10.00 13.00

A1251WV-10P 11.25 14.25

A1251WV-11P 12.50 15.50

A1251WV-12P 13.75 16.75

A1251WV-13P 15.00 18.00

A1251WV-14P 16.25 19.25

A1251WV-15P 17.50 20.50

Unit:mm

A1251WR 1.25mm pitch 90˚ Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Mates with H.R A1251 series Housing

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A1251WR-02P 1.25 4.25

A1251WR-03P 2.50 5.50

A1251WR-04P 3.75 6.75

A1251WR-05P 5.00 8.00

A1251WR-06P 6.25 9.25

A1251WR-07P 7.50 10.50

A1251WR-08P 8.75 11.75

A1251WR-09P 10.00 13.00

A1251WR-10P 11.25 14.25

A1251WR-11P 12.50 15.50

A1251WR-12P 13.75 16.75

A1251WR-13P 15.00 18.00

A1251WR-14P 16.25 19.25

A1251WR-15P 17.50 20.50

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-61-
