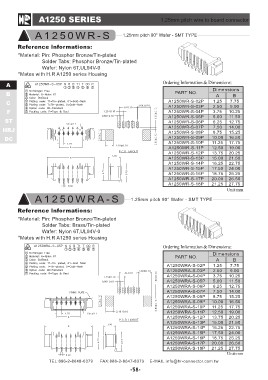

A1250 SERIES 1.25mm pitch wire to board connector

A1250WR-S 1.25mm pitch 90° Wafer - SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Solder Tabs: Phosphor Bronze/Tin-plated
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A1250 series Housing

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F
ST A1250WR-S-02P AB
HRJ A1250WR-S-03P
DC A1250WR-S-04P 1.25 7.75
A1250WR-S-05P 2.50 9.00
A1250WR-S-06P 3.75 10.25
A1250WR-S-07P 5.00 11.50
A1250WR-S-08P 6.25 12.75
A1250WR-S-09P 7.50 14.00
A1250WR-S-10P 8.75 15.25
A1250WR-S-11P 10.00 16.50
A1250WR-S-12P 11.25 17.75
A1250WR-S-13P 12.50 19.00
A1250WR-S-14P 13.75 20.25
A1250WR-S-15P 15.00 21.50
A1250WR-S-16P 16.25 22.75
A1250WR-S-17P 17.50 24.00
A1250WR-S-18P 18.75 25.25
20.00 26.50
21.25 27.75

Unit:mm

A 1 2 5 0 W R A - S 1.25mm pitch 90° Wafer - SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Solder Tabs: Brass/Tin-plated
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A1250 series Housing

Ordering Information & Dimensions:

PART NO. Dimensions

A1250WRA-S-02P AB
A1250WRA-S-03P
A1250WRA-S-04P 1.25 7.75
A1250WRA-S-05P 2.50 9.00
A1250WRA-S-06P 3.75 10.25
A1250WRA-S-07P 5.00 11.50
A1250WRA-S-08P 6.25 12.75
A1250WRA-S-09P 7.50 14.00
A1250WRA-S-10P 8.75 15.25
A1250WRA-S-11P 10.00 16.50
A1250WRA-S-12P 11.25 17.75
A1250WRA-S-13P 12.50 19.00
A1250WRA-S-14P 13.75 20.25
A1250WRA-S-15P 15.00 21.50
A1250WRA-S-16P 16.25 22.75
A1250WRA-S-17P 17.50 24.00
A1250WRA-S-18P 18.75 25.25
20.00 26.50
21.25 27.75

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
