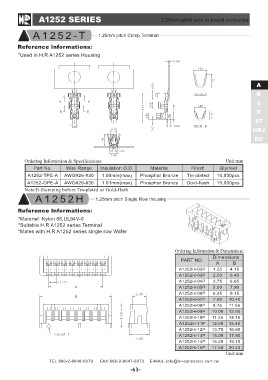

A1252 SERIES 1.25mm pitch wire to board connector

A1252-T 1.25mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1252 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated 10,000pcs
A1252-TPE-A AWG#26-#30 1.00mm(max) Phosphor Bronze Gold-flash

A1252-GPE-A AWG#26-#30 1.01mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated or Gold-flash

A1252H 1.25mm pitch Single Row Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A1252 series Terminal
*Mates with H.R A1252 series single row Wafer

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A1252H-02P 1.25 4.15

A1252H-03P 2.50 5.40

A1252H-04P 3.75 6.65

A1252H-05P 5.00 7.90

A1252H-06P 6.25 9.15

A1252H-07P 7.50 10.40

A1252H-08P 8.75 11.65

A1252H-09P 10.00 12.90

A1252H-10P 11.25 14.15

A1252H-11P 12.50 15.40

A1252H-12P 13.75 16.65

A1252H-13P 15.00 17.90

A1252H-14P 16.25 19.15

A1252H-15P 17.50 20.40

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-63-
