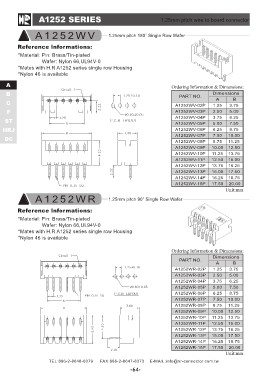

A1252 SERIES 1.25mm pitch wire to board connector

A1252WV 1.25mm pitch 180˚ Single Row Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Mates with H.R A1252 series single row Housing
*Nylon 46 is available

A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F AB
ST
HRJ A1252WV-02P 1.25 3.75
DC
A1252WV-03P 2.50 5.00

A1252WV-04P 3.75 6.25

A1252WV-05P 5.00 7.50

A1252WV-06P 6.25 8.75

A1252WV-07P 7.50 10.00

A1252WV-08P 8.75 11.25

A1252WV-09P 10.00 12.50

A1252WV-10P 11.25 13.75

A1252WV-11P 12.50 15.00

A1252WV-12P 13.75 16.25

A1252WV-13P 15.00 17.50

A1252WV-14P 16.25 18.75

A1252WV-15P 17.50 20.00

Unit:mm

A1252WR 1.25mm pitch 90˚ Single Row Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Mates with H.R A1252 series single row Housing
*Nylon 46 is available

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A1252WR-02P 1.25 3.75

A1252WR-03P 2.50 5.00

A1252WR-04P 3.75 6.25

A1252WR-05P 5.00 7.50

A1252WR-06P 6.25 8.75

A1252WR-07P 7.50 10.00

A1252WR-08P 8.75 11.25

A1252WR-09P 10.00 12.50

A1252WR-10P 11.25 13.75

A1252WR-11P 12.50 15.00

A1252WR-12P 13.75 16.25

A1252WR-13P 15.00 17.50

A1252WR-14P 16.25 18.75

A1252WR-15P 17.50 20.00

Unit:mm
