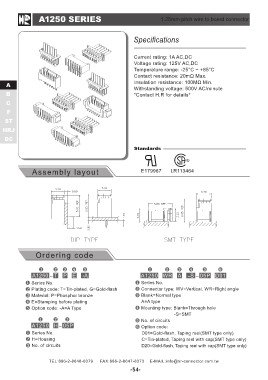

A1250 SERIES 1.25mm pitch wire to board connector

A Specifications
B
C Current rating: 1A AC,DC
F Voltage rating: 125V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 100MΩ Min.
Withstanding voltage: 500V AC/minute
Assembly layout *Contact H.R for details*

Standards

E179987 ®

LR113464

Ordering code

A1250 - T P E -A A1250 WR A -S - 05P D01

Series No. Series No.
Plating code: T=Tin-plated, G=Gold-flash Connector type: WV=Vertical, WR=Right angle
Material: P=Phosphor bronze Blank=Normal type
E=Stamping before plating A=A type
Option code: -A=A Type Mounting type: Blank=Through hole

A1250 H - 05P -S=SMT
No. of circuits
Series No. Option code:
H=Housing D01=Gold-flash, Taping reel(SMT type only)
No. of circuits C=Tin-plated, Taping reel with cap(SMT type only)
D20=Gold-flash, Taping reel with cap(SMT type only)
