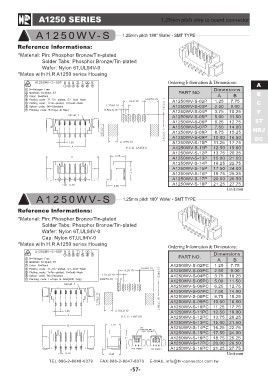

A1250 SERIES 1.25mm pitch wire to board connector

A1250WV-S 1.25mm pitch 180° Wafer - SMT TYPE

Reference lnformations:

*Material: Pin: Phosphor Bronze/Tin-plated
Solder Tabs: Phosphor Bronze/Tin-plated
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A1250 series Housing

Ordering Information & Dimensions: A
B
PART NO. Dimensions C
F
A1250WV-S-02P AB ST
A1250WV-S-03P HRJ
A1250WV-S-04P 1.25 7.75 DC
A1250WV-S-05P 2.50 9.00
A1250WV-S-06P 3.75 10.25
A1250WV-S-07P 5.00 11.50
A1250WV-S-08P 6.25 12.75
A1250WV-S-09P 7.50 14.00
A1250WV-S-10P 8.75 15.25
A1250WV-S-11P 10.00 16.50
A1250WV-S-12P 11.25 17.75
A1250WV-S-13P 12.50 19.00
A1250WV-S-14P 13.75 20.25
A1250WV-S-15P 15.00 21.50
A1250WV-S-16P 16.25 22.75
A1250WV-S-17P 17.50 24.00
A1250WV-S-18P 18.75 25.25
20.00 26.50
21.25 27.75

Unit:mm

A1250WV-S 1.25mm pitch 180° Wafer - SMT TYPE

Reference lnformations: Ordering Information & Dimensions:

*Material: Pin: Phosphor Bronze/Tin-plated
Solder Tabs: Phosphor Bronze/Tin-plated
Wafer: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0

*Mates with H.R A1250 series Housing

PART NO. Dimensions

A1250WV-S-02PC AB
A1250WV-S-03PC
A1250WV-S-04PC 1.25 7.75
A1250WV-S-05PC 2.50 9.00
A1250WV-S-06PC 3.75 10.25
A1250WV-S-07PC 5.00 11.50
A1250WV-S-08PC 6.25 12.75
A1250WV-S-09PC 7.50 14.00
A1250WV-S-10PC 8.75 15.25
A1250WV-S-11PC 10.00 16.50
A1250WV-S-12PC 11.25 17.75
A1250WV-S-13PC 12.50 19.00
A1250WV-S-14PC 13.75 20.25
A1250WV-S-15PC 15.00 21.50
A1250WV-S-16PC 16.25 22.75
A1250WV-S-17PC 17.50 24.00
A1250WV-S-18PC 18.75 25.25
20.00 26.50
21.25 27.75

Unit:mm
