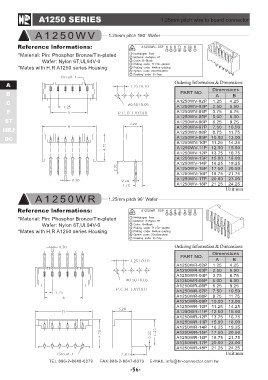

A1250 SERIES 1.25mm pitch wire to board connector
A1250WV 1.25mm pitch 180˚ Wafer
Reference lnformations:
*Material: Pin: Phosphor Bronze/Tin-plated
Wafer: Nylon 6T,UL94V-0
*Mates with H.R A1250 series Housing
A Ordering Information & Dimensions:
B
C PART NO. Dimensions
F
ST A1250WV-02P AB
HRJ A1250WV-03P
DC A1250WV-04P 1.25 4.25
A1250WV-05P 2.50 5.50
A1250WV-06P 3.75 6.75
A1250WV-07P 5.00 8.00
A1250WV-08P 6.25 9.25
A1250WV-09P 7.50 10.50
A1250WV-10P 8.75 11.75
A1250WV-11P 10.00 13.00
A1250WV-12P 11.25 14.25
A1250WV-13P 12.50 15.50
A1250WV-14P 13.75 16.75
A1250WV-15P 15.00 18.00
A1250WV-16P 16.25 19.25
A1250WV-17P 17.50 20.50
A1250WV-18P 18.75 21.75
20.00 23.00
21.25 24.25
Unit:mm
A1250WR 1.25mm pitch 90˚ Wafer
Reference lnformations:
*Material: Pin: Phosphor Bronze/Tin-plated
Wafer: Nylon 6T,UL94V-0
*Mates with H.R A1250 series Housing
Ordering Information & Dimensions:
PART NO. Dimensions
A1250WR-02P AB
A1250WR-03P
A1250WR-04P 1.25 4.25
A1250WR-05P 2.50 5.50
A1250WR-06P 3.75 6.75
A1250WR-07P 5.00 8.00
A1250WR-08P 6.25 9.25
A1250WR-09P 7.50 10.50
A1250WR-10P 8.75 11.75
A1250WR-11P 10.00 13.00
A1250WR-12P 11.25 14.25
A1250WR-13P 12.50 15.50
A1250WR-14P 13.75 16.75
A1250WR-15P 15.00 18.00
A1250WR-16P 16.25 19.25
A1250WR-17P 17.50 20.50
A1250WR-18P 18.75 21.75
20.00 23.00
21.25 24.25
Unit:mm
