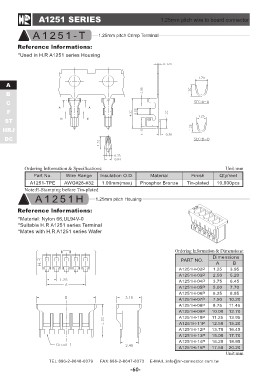

A1251 SERIES 1.25mm pitch wire to board connector

A1251-T 1.25mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1251 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated
A1251-TPE AWG#28-#32 1.00mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated

A 1 2 5 1 H 1.25mm pitch Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A1251 series Terminal
*Mates with H.R A1251 series Wafer

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A1251H-02P 1.25 3.95

A1251H-03P 2.50 5.20

A1251H-04P 3.75 6.45

A1251H-05P 5.00 7.70

A1251H-06P 6.25 8.95

A1251H-07P 7.50 10.20

A1251H-08P 8.75 11.45

A1251H-09P 10.00 12.70

A1251H-10P 11.25 13.95

A1251H-11P 12.50 15.20

A1251H-12P 13.75 16.45

A1251H-13P 15.00 17.70

A1251H-14P 16.25 18.95

A1251H-15P 17.50 20.20

Unit:mm
