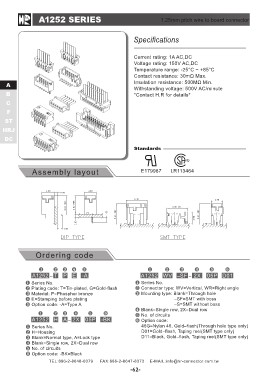

A1252 SERIES 1.25mm pitch wire to board connector

A Specifications
B
C Current rating: 1A AC,DC
F Voltage rating: 150V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 30mΩ Max.
DC Insulation resistance: 500MΩ Min.
Withstanding voltage: 500V AC/minute
Assembly layout *Contact H.R for details*

Standards

E179987 ®

LR113464

Ordering code

A1252 - T P E -A A1252 WV -SF - 2X 05P D01

Series No. Series No.
Plating code: T=Tin-plated, G=Gold-flash Connector type: WV=Vertical, WR=Right angle
Material: P=Phosphor bronze Mounting type: Blank=Through hole
E=Stamping before plating
Option code: -A=Type A –SF=SMT with boss
–S=SMT without boss
A1252 H A - 2X 05P -BK Blank=Single row, 2X=Dual row
No. of circuits
Series No. Option code:
H=Housing 46G=Nylon 46, Gold–flash(Through hole type only)
Blank=Normal type, A=Lock type D01=Gold–flash, Taping reel(SMT type only)
Blank=Single row, 2X=Dual row D11=Black, Gold–flash, Taping reel(SMT type only)
No. of circuits
Option code: -BK=Black

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-62-
