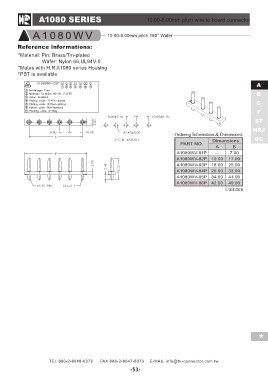

A1080 SERIES 10.00-8.00mm pitch wire to board connector
A1080WV 10.00-8.00mm pitch 180° Wafer
Reference lnformations:
*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0
*Mates with H.R A1080 series Housing
*PBT is available
Ordering Information & Dimensions: A
B
PART NO. Dimensions C
AB F
ST
HRJ
DC
A1080WV-01P --- 7.00
A1080WV-02P 10.00 17.00
A1080WV-03P 18.00 25.00
A1080WV-04P 26.00 33.00
A1080WV-05P 34.00 41.00
A1080WV-06P 42.00 49.00
Unit:mm
*
