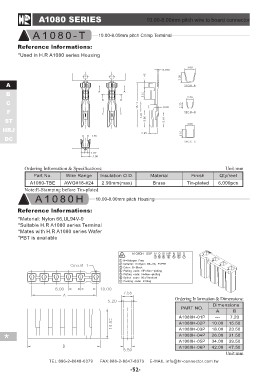

A1080 SERIES 10.00-8.00mm pitch wire to board connector

A1080-T 10.00-8.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1080 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 6,000pcs
Tin-plated
A1080-TBE AWG#18-#24 2.90mm(max) Brass

Note:E-Stamping before Tin-plated

A1080H 10.00-8.00mm pitch Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A1080 series Terminal
*Mates with H.R A1080 series Wafer
*PBT is available

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A1080H-01P --- 7.20

A1080H-02P 10.00 15.50

A1080H-03P 18.00 23.50

* A1080H-04P 26.00 31.50
A1080H-05P 34.00 39.50
A1080H-06P 42.00 47.50

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
