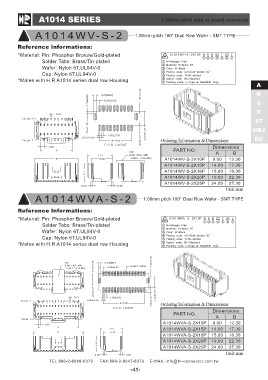

A1014 SERIES 1.00mm pitch wire to board connector
A1014WV-S-2 1.00mm pitch 180° Dual Row Wafer - SMT TYPE
Reference lnformations: A
B
*Material: Pin: Phosphor Bronze/Gold-plated C
Solder Tabs: Brass/Tin-plated F
Wafer: Nylon 6T,UL94V-0 ST
Cap: Nylon 6T,UL94V-0 HRJ
DC
*Mates with H.R A1014 series dual row Housing
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A1014WV-S-2X10P 9.00 12.30
A1014WV-S-2X15P 14.00 17.30
A1014WV-S-2X16P 15.00 18.30
A1014WV-S-2X20P 19.00 22.30
A1014WV-S-2X25P 24.00 27.30
Unit:mm
A 1 0 1 4 W VA - S - 2 1.00mm pitch 180° Dual Row Wafer - SMT TYPE
Reference lnformations:
*Material: Pin: Phosphor Bronze/Gold-plated
Solder Tabs: Brass/Tin-plated
Wafer: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0
*Mates with H.R A1014 series dual row Housing
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A1014WVA-S-2X10P 9.00 12.30
A1014WVA-S-2X15P 14.00 17.30
A1014WVA-S-2X16P 15.00 18.30
A1014WVA-S-2X20P 19.00 22.30
A1014WVA-S-2X25P 24.00 27.30
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-41-
