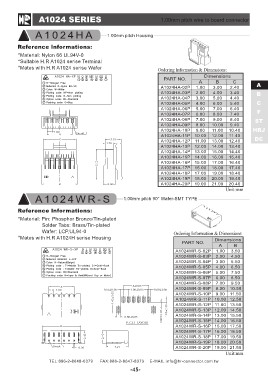

A1024 SERIES 1.00mm pitch wire to board connector

A1024HA 1.00mm pitch Housing

Reference lnformations: Ordering Information & Dimensions:
*Material: Nylon 66 UL94V-0
*Suitable H.R A1024 serise Terminal PART NO. Dimensions A
*Mates with H.R A1024 serise Wafer A1024HA-02P ABC B
1.00 3.00 2.40 C
A1024WR-S F
A1024HA-03P 2.00 4.00 3.40 ST
A1024HA-04P 3.00 5.00 4.40 HRJ
DC
A1024HA-05P 4.00 6.00 5.40
A1024HA-06P 5.00 7.00 6.40

A1024HA-07P 6.00 8.00 7.40

A1024HA-08P 7.00 9.00 8.40
A1024HA-09P 8.00 10.00 9.40

A1024HA-10P 9.00 11.00 10.40
A1024HA-11P 10.00 12.00 11.40

A1024HA-12P 11.00 13.00 12.40
A1024HA-13P 12.00 14.00 13.40

A1024HA-14P 13.00 15.00 14.40
A1024HA-15P 14.00 16.00 15.40

A1024HA-16P 15.00 17.00 16.40
A1024HA-17P 16.00 18.00 17.40

A1024HA-18P 17.00 19.00 18.40
A1024HA-19P 18.00 20.00 19.40
A1024HA-20P 19.00 21.00 20.40

Unit:mm

1.00mm pitch 90° Wafer-SMT TYPE

Reference lnformations: Ordering Information & Dimensions:

*Material: Pin: Phosphor Bronze/Tin-plated PART NO. Dimensions
Solder Tabs: Brass/Tin-plated AB
Wafer: LCP,UL94-0

*Mates with H.R A1024H serise Housing

A1024WR-S-02P 1.00 3.50

A1024WR-S-03P 2.00 4.50
A1024WR-S-04P 3.00 5.50

A1024WR-S-05P 4.00 6.50
A1024WR-S-06P 5.00 7.50
A1024WR-S-07P 6.00 8.50

A1024WR-S-08P 7.00 9.50
A1024WR-S-09P 8.00 10.50

A1024WR-S-10P 9.00 11.50
A1024WR-S-11P 10.00 12.50

A1024WR-S-12P 11.00 13.50
A1024WR-S-13P 12.00 14.50

A1024WR-S-14P 13.00 15.50
A1024WR-S-15P 14.00 16.50

A1024WR-S-16P 15.00 17.50
A1024WR-S-17P 16.00 18.50

A1024WR-S-18P 17.00 19.50
A1024WR-S-19P 18.00 20.50
A1024WR-S-20P 19.00 21.50

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-45-
