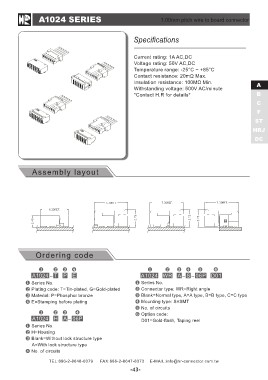

A1024 SERIES 1.00mm pitch wire to board connector
Assembly layout
Specifications

Current rating: 1A AC,DC A
Voltage rating: 50V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 20mΩ Max. F
Insulation resistance: 100MΩ Min. ST
Withstanding voltage: 500V AC/minute HRJ
*Contact H.R for details* DC

Ordering code

A1024 - T P E A1024 WR A - S - 06P D01

Series No. Series No.
Plating code: T=Tin-plated, G=Gold-plated Connector type: WR=Right angle
Material: P=Phosphor bronze Blank=Normal type, A=A type, B=B type, C=C type
E=Stamping before plating Mounting type: S=SMT
No. of circuits
A1024 H A - 06P Option code:
D01=Gold-flash, Taping reel
Series No.
H=Housing
Blank=Without lock structure type
A=With lock structure type
No. of circuits

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-43-
