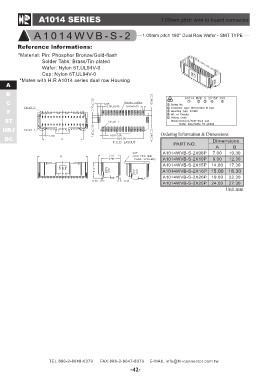

A1014 SERIES 1.00mm pitch wire to board connector

A1014WVB-S-2 1.00mm pitch 180° Dual Row Wafer - SMT TYPE

Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Phosphor Bronze/Gold-flash
PART NO. Dimensions
Solder Tabs: Brass/Tin-plated AB
Wafer: Nylon 6T,UL94V-0
Cap: Nylon 6T,UL94V-0
*Mates with H.R A1014 series dual row Housing
A

B

C
F

ST

HRJ

DC

A1014WVB-S-2X08P 7.00 10.30

A1014WVB-S-2X10P 9.00 12.30

A1014WVB-S-2X15P 14.00 17.30

A1014WVB-S-2X16P 15.00 18.30

A1014WVB-S-2X20P 19.00 22.30

A1014WVB-S-2X25P 24.00 27.30

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-42-
