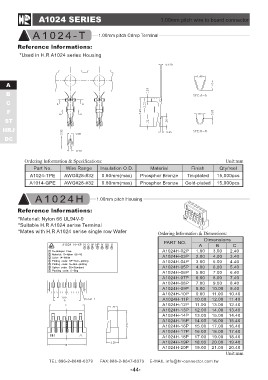

A1024 SERIES 1.00mm pitch wire to board connector

A1024-T 1.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1024 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Phosphor Bronze Tin-plated 15,000pcs
A1024-TPE AWG#28-#32 0.80mm(max) Phosphor Bronze Gold-plated

A1014-GPE AWG#28-#32 0.80mm(max)

A1024H 1.00mm pitch Housing

Reference lnformations: Ordering Information & Dimensions:

*Material: Nylon 66 UL94V-0
*Suitable H.R A1024 serise Terminal
*Mates with H.R A1024 serise single row Wafer

PART NO. Dimensions
A1024H-02P ABC
1.00 3.00 2.40

A1024H-03P 2.00 4.00 3.40
A1024H-04P 3.00 5.00 4.40

A1024H-05P 4.00 6.00 5.40
A1024H-06P 5.00 7.00 6.40
A1024H-07P 6.00 8.00 7.40

A1024H-08P 7.00 9.00 8.40
A1024H-09P 8.00 10.00 9.40

A1024H-10P 9.00 11.00 10.40
A1024H-11P 10.00 12.00 11.40

A1024H-12P 11.00 13.00 12.40
A1024H-13P 12.00 14.00 13.40

A1024H-14P 13.00 15.00 14.40
A1024H-15P 14.00 16.00 15.40

A1024H-16P 15.00 17.00 16.40
A1024H-17P 16.00 18.00 17.40

A1024H-18P 17.00 19.00 18.40
A1024H-19P 18.00 20.00 19.40
A1024H-20P 19.00 21.00 20.40

Unit:mm
