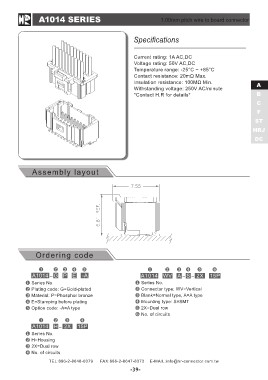

A1014 SERIES               1.00mm pitch wire to board connector
Assembly layout
                             Specifications

                             Current rating: 1A AC,DC                               A
                             Voltage rating: 50V AC,DC                              B
                             Temperature range: -25°C ~ +85°C                       C
                             Contact resistance: 20mΩ Max.                          F
                             Insulation resistance: 100MΩ Min.                     ST
                             Withstanding voltage: 250V AC/minute                 HRJ
                             *Contact H.R for details*                             DC

Ordering code

A1014 - G P E -A             A1014 WV A - S - 2X          15P

Series No.                   Series No.
Plating code: G=Gold-plated  Connector type: WV=Vertical
Material: P=Phosphor bronze  Blank=Normal type, A=A type
E=Stamping before plating    Mounting type: S=SMT
Option code: -A=A type       2X=Dual row
                             No. of circuits

A1014 H - 2X     15P

Series No.
H=Housing
2X=Dual row
No. of circuits

TEL:886-2-8648-0379          FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
