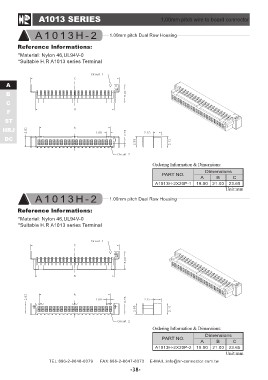

A10081030 SSEERRIIEESS 1.2050mm pitch wire to board connector

A 10 80 10 03 H I- 2 1.00mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 46,UL94V-0
*Suitable H.R A1013 series Terminal

A
B
C
F
ST
HRJ
DC

Ordering Information & Dimensions:

PART NO. Dimensions
AB C

A1013H-2X20P-1 19.00 21.00 23.65

Unit:mm

A 10 08 01 03 H -I 2 1.00mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 46,UL94V-0
*Suitable H.R A1013 series Terminal

Ordering Information & Dimensions:

PART NO. Dimensions
AB C

A1013H-2X20P-2 19.00 21.00 23.65

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-38-
