P. 56

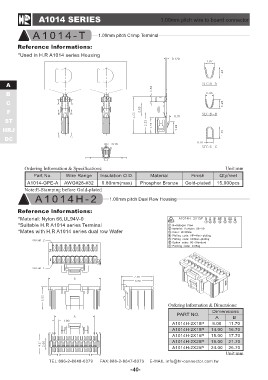

A1014 SERIES 1.00mm pitch wire to board connector
A1014-T 1.00mm pitch Crimp Terminal
Reference lnformations:
*Used in H.R A1014 series Housing
A
B
C
F
ST
HRJ
DC
Ordering Information & Speciļ¬cations: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Gold-plated
A1014-GPE-A AWG#28-#32 0.80mm(max) Phosphor Bronze
Note:E-Stamping before Gold-plated
A1014H-2 1.00mm pitch Dual Row Housing
Reference lnformations:
*Material: Nylon 66,UL94V-0
*Suitable H.R A1014 series Terminal
*Mates with H.R A1014 series dual row Wafer
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A1014H-2X10P 9.00 11.70
A1014H-2X15P 14.00 16.70
A1014H-2X16P 15.00 17.70
A1014H-2X20P 19.00 21.70
A1014H-2X25P 24.00 26.70
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-40-
