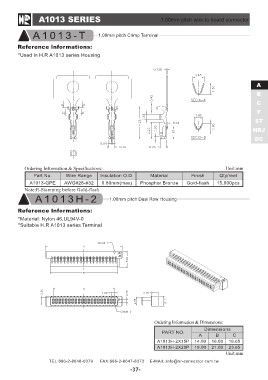

A1013 SERIES 1.00mm pitch wire to board connector

AA10081030-HTI 1.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A1013 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 15,000pcs
Gold-flash
A1013-GPE AWG#28-#32 0.80mm(max) Phosphor Bronze

Note:E-Stamping before Gold-flash

A 01 80 01 03 H I- 2 1.00mm pitch Dual Row Housing

Reference lnformations:

*Material: Nylon 46,UL94V-0
*Suitable H.R A1013 series Terminal

Ordering Information & Dimensions:

PART NO. Dimensions
ABC

A1013H-2X15P 14.00 16.00 18.65

A1013H-2X20P 19.00 21.00 23.65

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-37-
