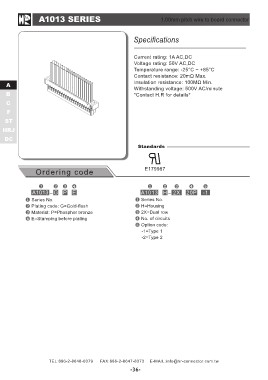

A1013 SERIES 1.00mm pitch wire to board connector

A Specifications
B
C Current rating: 1A AC,DC
F Voltage rating: 50V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 100MΩ Min.
Withstanding voltage: 500V AC/minute
AOsrsdeemribnlgy lcaoydoeut *Contact H.R for details*

A1013 - G P E Standards

Series No. E179987
Plating code: G=Gold-flash
Material: P=Phosphor bronze A1013 H - 2X 20P -1
E=Stamping before plating
Series No.
H=Housing
2X=Dual row
No. of circuits
Option code:
-1=Type 1
-2=Type 2

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-36-
