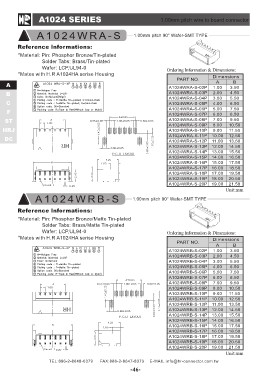

A1024 SERIES 1.00mm pitch wire to board connector

A1024WRA-S 1.00mm pitch 90° Wafer-SMT TYPE

Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Phosphor Bronze/Tin-plated
PART NO. Dimensions
Solder Tabs: Brass/Tin-plated AB
Wafer: LCP,UL94-0 A1024WRA-S-02P
*Mates with H.R A1024HA serise Housing A1024WRA-S-03P 1.00 3.50
A A1024WRA-S-04P 2.00 4.50
B A1024WRA-S-05P 3.00 5.50
C A1024WRA-S-06P 4.00 6.50
F A1024WRA-S-07P 5.00 7.50
ST A1024WRA-S-08P 6.00 8.50
HRJ A1024WRA-S-09P 7.00 9.50
DC A1024WRA-S-10P 8.00 10.50
A1024WRA-S-11P 9.00 11.50
A1024WRB-S A1024WRA-S-12P 10.00 12.50
A1024WRA-S-13P 11.00 13.50
A1024WRA-S-14P 12.00 14.50
A1024WRA-S-15P 13.00 15.50
A1024WRA-S-16P 14.00 16.50
A1024WRA-S-17P 15.00 17.50
A1024WRA-S-18P 16.00 18.50
A1024WRA-S-19P 17.00 19.50
A1024WRA-S-20P 18.00 20.50
19.00 21.50

Unit:mm

1.00mm pitch 90° Wafer-SMT TYPE

Reference lnformations: Ordering Information & Dimensions:

*Material: Pin: Phosphor Bronze/Matte Tin-plated PART NO. Dimensions
Solder Tabs: Brass/Matte Tin-plated AB
Wafer: LCP,UL94-0 A1024WRB-S-02P
A1024WRB-S-03P 1.00 3.50
*Mates with H.R A1024HA serise Housing A1024WRB-S-04P 2.00 4.50
A1024WRB-S-05P 3.00 5.50
A1024WRB-S-06P 4.00 6.50
A1024WRB-S-07P 5.00 7.50
A1024WRB-S-08P 6.00 8.50
A1024WRB-S-09P 7.00 9.50
A1024WRB-S-10P 8.00 10.50
A1024WRB-S-11P 9.00 11.50
A1024WRB-S-12P 10.00 12.50
A1024WRB-S-13P 11.00 13.50
A1024WRB-S-14P 12.00 14.50
A1024WRB-S-15P 13.00 15.50
A1024WRB-S-16P 14.00 16.50
A1024WRB-S-17P 15.00 17.50
A1024WRB-S-18P 16.00 18.50
A1024WRB-S-19P 17.00 19.50
A1024WRB-S-20P 18.00 20.50
19.00 21.50

Unit:mm
