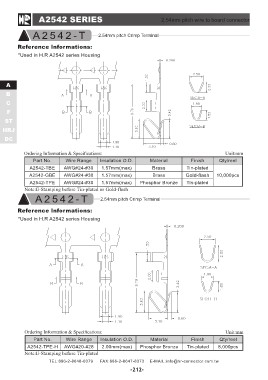

A2542 SERIES 2.54mm pitch wire to board connector

A2542-T 2.54mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A2542 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish
Tin-plated 10,000pcs
A2542-TBE AWG#24-#30 1.57mm(max) Brass Gold-flash
Tin-plated
A2542-GBE AWG#24-#30 1.57mm(max) Brass

A2542-TPE AWG#24-#30 1.57mm(max) Phosphor Bronze

Note:E-Stamping before Tin-plated or Gold-flash

A2542-T 2.54mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A2542 series Housing

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 8,000pcs
Phosphor Bronze Tin-plated
A2542-TPE-H AWG#20-#28 2.00mm(max)
Note:E-Stamping before Tin-plated
