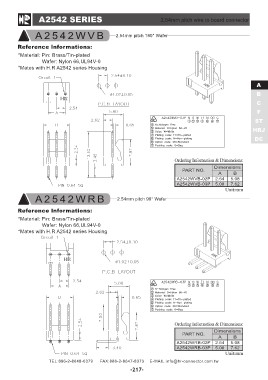

A2542 SERIES 2.54mm pitch wire to board connector

A2542WVB 2.54mm pitch 180° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Mates with H.R A2542 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Dimensions:

PART NO. Dimensions

A2542WVB-02P AB
A2542WVB-03P 2.54 5.08
5.08 7.62

Unit:mm

A2542WRB 2.54mm pitch 90° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-0

*Mates with H.R A2542 series Housing

Ordering Information & Dimensions:

PART NO. Dimensions

A2542WRB-02P AB
A2542WRB-03P 2.54 5.08
5.08 7.62

Unit:mm
