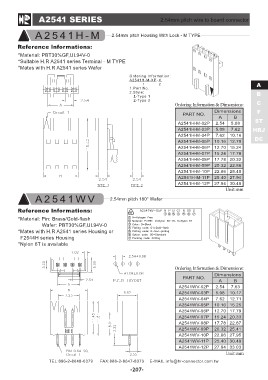

A2541 SERIES 2.54mm pitch wire to board connector

A2541H-M 2.54mm pitch Housing With Lock - M TYPE

Reference lnformations:

*Material: PBT30%GF,UL94V-0
*Suitable H.R A2541 series Terminal - M TYPE
*Mates with H.R A2541 series Wafer

Ordering Information: Ordering Information & Dimensions: A
A2541H-M-XP-＊ B
C
12 F
ST
1.Part No. HRJ
2.Style: DC

1-Type 1
2-Type 2

PART NO. Dimensions
AB

A2541H-M-02P 2.54 5.08

A2541H-M-03P 5.08 7.62

A2541H-M-04P 7.62 10.16

A2541H-M-05P 10.16 12.70

A2541H-M-06P 12.70 15.24

A2541H-M-07P 15.24 17.78

A2541H-M-08P 17.78 20.32

A2541H-M-09P 20.32 22.86

A2541H-M-10P 22.86 25.40

A2541H-M-11P 25.40 27.94

A2541H-M-12P 27.94 30.48

Unit:mm

A2541WV 2.54mm pitch 180° Wafer

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: PBT30%GF,UL94V-0

*Mates with H.R A2541 series Housing or
F2544H series Housing
*Nylon 6T is available

Ordering Information & Dimensions:

PART NO. Dimensions
AB

A2541WV-02P 2.54 7.63

A2541WV-03P 5.08 10.17

A2541WV-04P 7.62 12.71

A2541WV-05P 10.16 15.25

A2541WV-06P 12.70 17.79

A2541WV-07P 15.24 20.33

A2541WV-08P 17.78 22.87

A2541WV-09P 20.32 25.41

A2541WV-10P 22.86 27.95

A2541WV-11P 25.40 30.49

A2541WV-12P 27.94 33.03

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-207-
