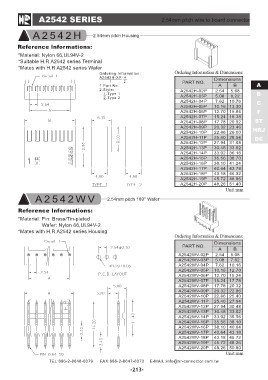

A2542 SERIES 2.54mm pitch wire to board connector

A 2 5 4 2 H 2.54mm pitch Housing

Reference lnformations: Ordering Information & Dimensions:
*Material: Nylon 66,UL94V-2
*Suitable H.R A2542 series Terminal PART NO. Dimensions A
*Mates with H.R A2542 series Wafer B
A2542H-02P AB C
Ordering Information: A2542H-03P F
A2542H-XP-＊ A2542H-04P 2.54 5.68 ST
A2542H-05P 5.08 8.22 HRJ
12 A2542H-06P 7.62 10.76 DC
1.Part No. A2542H-07P 10.16 13.30
2.Style: A2542H-08P 12.70 15.84
A2542H-09P 15.24 18.38
1-Type 1 A2542H-10P 17.78 20.92
2-Type 2 A2542H-11P 20.32 23.46
A2542H-12P 22.86 26.00
A 2 5 4 2 W V 2.54mm pitch 180° Wafer A2542H-13P 25.40 28.54
A2542H-14P 27.94 31.08
A2542H-15P 30.48 33.62
A2542H-16P 33.02 36.16
A2542H-17P 35.56 38.70
A2542H-18P 38.10 41.24
A2542H-19P 40.64 43.78
A2542H-20P 43.18 46.32
45.72 48.86
48.26 51.40

Unit:mm

Reference lnformations: Ordering Information & Dimensions:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R A2542 series Housing

PART NO. Dimensions

A2542WV-02P AB
A2542WV-03P
A2542WV-04P 2.54 5.08
A2542WV-05P 5.08 7.62
A2542WV-06P 7.62 10.16
A2542WV-07P 10.16 12.70
A2542WV-08P 12.70 15.24
A2542WV-09P 15.24 17.78
A2542WV-10P 17.78 20.32
A2542WV-11P 20.32 22.86
A2542WV-12P 22.86 25.40
A2542WV-13P 25.40 27.94
A2542WV-14P 27.94 30.48
A2542WV-15P 30.48 33.02
A2542WV-16P 33.02 35.56
A2542WV-17P 35.56 38.10
A2542WV-18P 38.10 40.64
A2542WV-19P 40.64 43.18
A2542WV-20P 43.18 45.72
45.72 48.26
48.26 50.80

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
