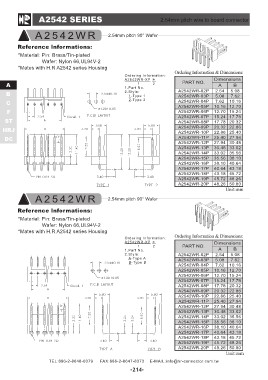

A2542 SERIES 2.54mm pitch wire to board connector

A2542WR 2.54mm pitch 90° Wafer

Reference lnformations: Ordering Information: Ordering Information & Dimensions:
*Material: Pin: Brass/Tin-plated A2542WR-XP ＊
PART NO. Dimensions
Wafer: Nylon 66,UL94V-2 12
*Mates with H.R A2542 series Housing A2542WR-02P AB
1.Part No. A2542WR-03P
A 2.Style: A2542WR-04P 2.54 5.08
B A2542WR-05P 5.08 7.62
C 1-Type 1 A2542WR-06P 7.62 10.16
F 2-Type 2 A2542WR-07P 10.16 12.70
ST A2542WR-08P 12.70 15.24
HRJ A2542WR-09P 15.24 17.78
DC A2542WR-10P 17.78 20.32
A2542WR-11P 20.32 22.86
A2542WR-12P 22.86 25.40
A2542WR-13P 25.40 27.94
A2542WR-14P 27.94 30.48
A2542WR-15P 30.48 33.02
A2542WR-16P 33.02 35.56
A2542WR-17P 35.56 38.10
A2542WR-18P 38.10 40.64
A2542WR-19P 40.64 43.18
A2542WR-20P 43.18 45.72
45.72 48.26
48.26 50.80

Unit:mm

A 2 5 4 2 W R 2.54mm pitch 90° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated Ordering Information & Dimensions:
Wafer: Nylon 66,UL94V-2

*Mates with H.R A2542 series Housing

Ordering Information: PART NO. Dimensions
A2542WR-XP ＊
A2542WR-02P AB
12 A2542WR-03P
A2542WR-04P 2.54 5.08
1.Part No. A2542WR-05P 5.08 7.62
2.Style: A2542WR-06P 7.62 10.16
A2542WR-07P 10.16 12.70
A-Type A A2542WR-08P 12.70 15.24
B-Type B A2542WR-09P 15.24 17.78
A2542WR-10P 17.78 20.32
A2542WR-11P 20.32 22.86
A2542WR-12P 22.86 25.40
A2542WR-13P 25.40 27.94
A2542WR-14P 27.94 30.48
A2542WR-15P 30.48 33.02
A2542WR-16P 33.02 35.56
A2542WR-17P 35.56 38.10
A2542WR-18P 38.10 40.64
A2542WR-19P 40.64 43.18
A2542WR-20P 43.18 45.72
45.72 48.26
48.26 50.80

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-214-
