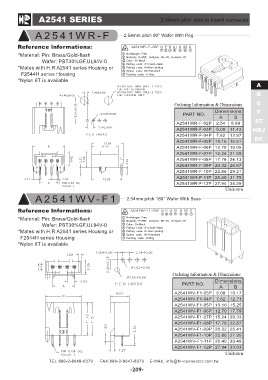

A2541 SERIES 2.54mm pitch wire to board connector
A2541WR-F 2.54mm pitch 90° Wafer With Peg
Reference lnformations: A
B
*Material: Pin: Brass/Gold-flash C
Wafer: PBT30%GF,UL94V-0 F
ST
*Mates with H.R A2541 series Housing or HRJ
F2544H series Housing DC
*Nylon 6T is available
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A2541WR-F-02P 2.54 8.89
A2541WR-F-03P 5.08 11.43
A2541WR-F-04P 7.62 13.97
A2541WR-F-05P 10.16 16.51
A2541WR-F-06P 12.70 19.05
A2541WR-F-07P 15.24 21.59
A2541WR-F-08P 17.78 24.13
A2541WR-F-09P 20.32 26.67
A2541WR-F-10P 22.86 29.21
A2541WR-F-11P 25.40 31.75
A2541WR-F-12P 27.94 34.29
Unit:mm
A2541WV-F1 2.54mm pitch 180° Wafer With Boss
Reference lnformations:
*Material: Pin: Brass/Gold-flash
Wafer: PBT30%GF,UL94V-0
*Mates with H.R A2541 series Housing or
F2544H series Housing
*Nylon 6T is available
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A2541WV-F1-03P 5.08 10.17
A2541WV-F1-04P 7.62 12.71
A2541WV-F1-05P 10.16 15.25
A2541WV-F1-06P 12.70 17.79
A2541WV-F1-07P 15.24 20.33
A2541WV-F1-08P 17.78 22.87
A2541WV-F1-09P 20.32 25.41
A2541WV-F1-10P 22.86 27.95
A2541WV-F1-11P 25.40 30.49
A2541WV-F1-12P 27.94 33.03
Unit:mm
