P. 226

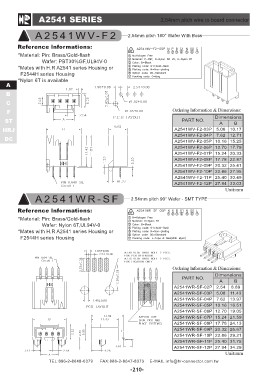

A2541 SERIES 2.54mm pitch wire to board connector
A2541WV-F2 2.54mm pitch 180° Wafer With Boss
Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Gold-flash
PART NO. Dimensions
Wafer: PBT30%GF,UL94V-0 AB
*Mates with H.R A2541 series Housing or
F2544H series Housing A2541WV-F2-03P 5.08 10.17
*Nylon 6T is available
A A2541WV-F2-04P 7.62 12.71
B A2541WV-F2-05P 10.16 15.25
C
F A2541WV-F2-06P 12.70 17.79
ST
HRJ A2541WV-F2-07P 15.24 20.33
DC
A2541WV-F2-08P 17.78 22.87
A2541WR-SF
A2541WV-F2-09P 20.32 25.41
Reference lnformations:
*Material: Pin: Brass/Gold-flash A2541WV-F2-10P 22.86 27.95
Wafer: Nylon 6T,UL94V-0 A2541WV-F2-11P 25.40 30.49
*Mates with H.R A2541 series Housing or A2541WV-F2-12P 27.94 33.03
F2544H series Housing
Unit:mm
2.54mm pitch 90° Wafer - SMT TYPE
Ordering Information & Dimensions:
PART NO. Dimensions
AB
A2541WR-SF-02P 2.54 8.89
A2541WR-SF-03P 5.08 11.43
A2541WR-SF-04P 7.62 13.97
A2541WR-SF-05P 10.16 16.51
A2541WR-SF-06P 12.70 19.05
A2541WR-SF-07P 15.24 21.59
A2541WR-SF-08P 17.78 24.13
A2541WR-SF-09P 20.32 26.67
A2541WR-SF-10P 22.86 29.21
A2541WR-SF-11P 25.40 31.75
A2541WR-SF-12P 27.94 34.29
Unit:mm
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
