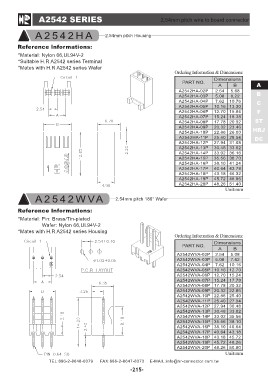

A2542 SERIES 2.54mm pitch wire to board connector

A 2 5 4 2 H A 2.54mm pitch Housing

Reference lnformations: Ordering Information & Dimensions:
*Material: Nylon 66,UL94V-2
*Suitable H.R A2542 series Terminal PART NO. Dimensions A
*Mates with H.R A2542 series Wafer B
A2542HA-02P AB C
A 2 5 4 2 W VA A2542HA-03P F
A2542HA-04P 2.54 5.68 ST
A2542HA-05P 5.08 8.22 HRJ
A2542HA-06P 7.62 10.76 DC
A2542HA-07P 10.16 13.30
A2542HA-08P 12.70 15.84
A2542HA-09P 15.24 18.38
A2542HA-10P 17.78 20.92
A2542HA-11P 20.32 23.46
A2542HA-12P 22.86 26.00
A2542HA-13P 25.40 28.54
A2542HA-14P 27.94 31.08
A2542HA-15P 30.48 33.62
A2542HA-16P 33.02 36.16
A2542HA-17P 35.56 38.70
A2542HA-18P 38.10 41.24
A2542HA-19P 40.64 43.78
A2542HA-20P 43.18 46.32
45.72 48.86
48.26 51.40

Unit:mm

2.54mm pitch 180° Wafer

Reference lnformations: Ordering Information & Dimensions:

*Material: Pin: Brass/Tin-plated
Wafer: Nylon 66,UL94V-2

*Mates with H.R A2542 series Housing

PART NO. Dimensions

A2542WVA-02P AB
A2542WVA-03P
A2542WVA-04P 2.54 5.08
A2542WVA-05P 5.08 7.62
A2542WVA-06P 7.62 10.16
A2542WVA-07P 10.16 12.70
A2542WVA-08P 12.70 15.24
A2542WVA-09P 15.24 17.78
A2542WVA-10P 17.78 20.32
A2542WVA-11P 20.32 22.86
A2542WVA-12P 22.86 25.40
A2542WVA-13P 25.40 27.94
A2542WVA-14P 27.94 30.48
A2542WVA-15P 30.48 33.02
A2542WVA-16P 33.02 35.56
A2542WVA-17P 35.56 38.10
A2542WVA-18P 38.10 40.64
A2542WVA-19P 40.64 43.18
A2542WVA-20P 43.18 45.72
45.72 48.26
48.26 50.80

Unit:mm
