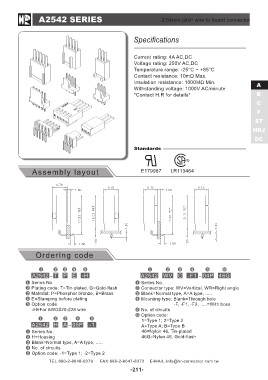

A2542 SERIES 2.54mm pitch wire to board connector
Assembly layout
Specifications

Current rating: 4A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 10mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 1000V AC/minute HRJ
*Contact H.R for details* DC

Standards

E179987 ®

LR113464

Ordering code

A2542 - T P E -H A2542 WV C -F1 - 04P 46G

Series No. Series No.
Plating code: T=Tin-plated, G=Gold-flash Connector type: WV=Vertical, WR=Right angle
Material: P=Phosphor bronze, B=Brass Blank=Normal type, A=A type, .....
E=Stamping before plating Mounting type: Blank=Through hole
Option code:
-H=For AWG#20-#28 wire -F, -F1, -F2, .....=With boss
No. of circuits
A2542 H A - 05P -1 Option code:
1=Type 1; 2=Type 2
Series No. A=Type A; B=Type B
H=Housing 46=Nylon 46, Tin-plated
Blank=Normal type, A=A type, ..... 46G=Nylon 46, Gold-flash
No. of circuits
Option code: -1=Type 1; -2=Type 2

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-211-
