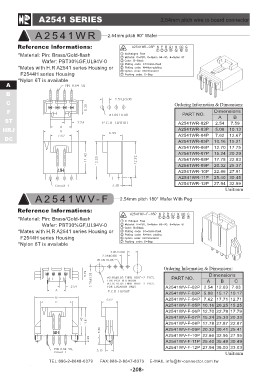

A2541 SERIES 2.54mm pitch wire to board connector

A 2 5 4 1 W R 2.54mm pitch 90° Wafer

Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Gold-flash
PART NO. Dimensions
Wafer: PBT30%GF,UL94V-0 AB
*Mates with H.R A2541 series Housing or
F2544H series Housing A2541WR-02P 2.54 7.59
*Nylon 6T is available
A A2541WR-03P 5.08 10.13
B
C A2541WR-04P 7.62 12.67
F
ST A2541WR-05P 10.16 15.21
HRJ
DC A2541WR-06P 12.70 17.75

A2541WV-F A2541WR-07P 15.24 20.29

A2541WR-08P 17.78 22.83

A2541WR-09P 20.32 25.37

A2541WR-10P 22.86 27.91

A2541WR-11P 25.40 30.45

A2541WR-12P 27.94 32.99

Unit:mm

2.54mm pitch 180° Wafer With Peg

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: PBT30%GF,UL94V-0

*Mates with H.R A2541 series Housing or
F2544H series Housing
*Nylon 6T is available

Ordering Information & Dimensions:

PART NO. Dimensions
ABC

A2541WV-F-02P 2.54 12.63 7.63

A2541WV-F-03P 5.08 15.17 10.17

A2541WV-F-04P 7.62 17.71 12.71

A2541WV-F-05P 10.16 20.25 15.25

A2541WV-F-06P 12.70 22.79 17.79

A2541WV-F-07P 15.24 25.33 20.33

A2541WV-F-08P 17.78 27.87 22.87

A2541WV-F-09P 20.32 30.41 25.41

A2541WV-F-10P 22.86 32.95 27.95

A2541WV-F-11P 25.40 35.49 30.49

A2541WV-F-12P 27.94 38.03 33.03

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
