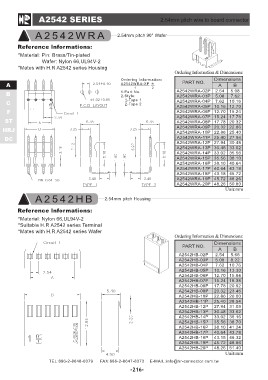

A2542 SERIES 2.54mm pitch wire to board connector

A 02 85 04 20 HWIR A 2.54mm pitch 90° Wafer

Reference lnformations: Ordering Information & Dimensions:
*Material: Pin: Brass/Tin-plated
Ordering Information: PART NO. Dimensions
Wafer: Nylon 66,UL94V-2 A2542WRA-XP ＊ AB
*Mates with H.R A2542 series Housing
12 A2542WRA-02P 2.54 5.08
A
B 1.Part No. A2542WRA-03P 5.08 7.62
C 2.Style:
F A2542WRA-04P 7.62 10.16
ST 1-Type 1
HRJ 2-Type 2 A2542WRA-05P 10.16 12.70
DC
A2542WRA-06P 12.70 15.24

A2542WRA-07P 15.24 17.78

A2542WRA-08P 17.78 20.32

A2542WRA-09P 20.32 22.86

A2542WRA-10P 22.86 25.40

A2542WRA-11P 25.40 27.94

A2542WRA-12P 27.94 30.48

A2542WRA-13P 30.48 33.02

A2542WRA-14P 33.02 35.56

A2542WRA-15P 35.56 38.10

A2542WRA-16P 38.10 40.64

A2542WRA-17P 40.64 43.18

A2542WRA-18P 43.18 45.72

A2542WRA-19P 45.72 48.26

A2542WRA-20P 48.26 50.80

Unit:mm

A 02 85 40 02 H IB 2.54mm pitch Housing

Reference lnformations: Ordering Information & Dimensions:

*Material: Nylon 66,UL94V-2
*Suitable H.R A2542 series Terminal
*Mates with H.R A2542 series Wafer

PART NO. Dimensions

A2542HB-02P AB
A2542HB-03P
A2542HB-04P 2.54 5.68
A2542HB-05P 5.08 8.22
A2542HB-06P 7.62 10.76
A2542HB-07P 10.16 13.30
A2542HB-08P 12.70 15.84
A2542HB-09P 15.24 18.38
A2542HB-10P 17.78 20.92
A2542HB-11P 20.32 23.46
A2542HB-12P 22.86 26.00
A2542HB-13P 25.40 28.54
A2542HB-14P 27.94 31.08
A2542HB-15P 30.48 33.62
A2542HB-16P 33.02 36.16
A2542HB-17P 35.56 38.70
A2542HB-18P 38.10 41.24
A2542HB-19P 40.64 43.78
A2542HB-20P 43.18 46.32
45.72 48.86
48.26 51.40

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-216-
