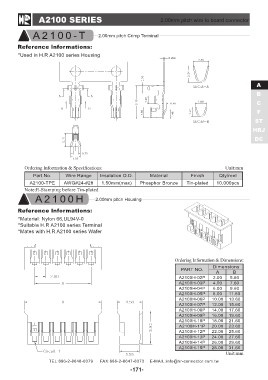

A2100 SERIES 2.00mm pitch wire to board connector

A2100-T 2.00mm pitch Crimp Terminal

Reference lnformations:
*Used in H.R A2100 series Housing

A
B
C
F
ST
HRJ
DC

Ordering Information & Specifications: Unit:mm
Qty/reel
Part No. Wire Range Insulation O.D. Material Finish 10,000pcs
Tin-plated
A2100-TPE AWG#24-#28 1.50mm(max) Phosphor Bronze
Note:E-Stamping before Tin-plated

A 2 1 0 0 H 2.00mm pitch Housing

Reference lnformations:

*Material: Nylon 66,UL94V-0
*Suitable H.R A2100 series Terminal
*Mates with H.R A2100 series Wafer

Ordering Information & Dimensions:

PART NO. Dimensions
AB
A2100H-02P
A2100H-03P 2.00 5.60
A2100H-04P 4.00 7.60
A2100H-05P 6.00 9.60
A2100H-06P 8.00 11.60
A2100H-07P 10.00 13.60
A2100H-08P 12.00 15.60
A2100H-09P 14.00 17.60
A2100H-10P 16.00 19.60
A2100H-11P 18.00 21.60
A2100H-12P 20.00 23.60
A2100H-13P 22.00 25.60
A2100H-14P 24.00 27.60
A2100H-15P 26.00 29.60
28.00 31.60

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
