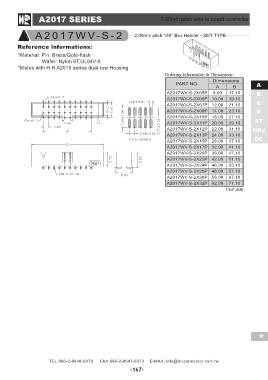

A2017 SERIES 2.00mm pitch wire to board connector

A 2 0 1 7 W V - S - 2 2.00mm pitch 180° Box Header - SMT TYPE

Reference lnformations:

*Material: Pin: Brass/Gold-flash
Wafer: Nylon 6T,UL94V-0

*Mates with H.R A2016 series dual row Housing

Ordering Information & Dimensions:

PART NO. Dimensions A
AB B
C
A2017WV-S-2X05P 8.00 17.10 F
ST
A2017WV-S-2X06P 10.00 19.10 HRJ
DC
A2017WV-S-2X07P 12.00 21.10

A2017WV-S-2X08P 14.00 23.10

A2017WV-S-2X10P 18.00 27.10

A2017WV-S-2X11P 20.00 29.10

A2017WV-S-2X12P 22.00 31.10

A2017WV-S-2X13P 24.00 33.10

A2017WV-S-2X15P 28.00 37.10

A2017WV-S-2X17P 32.00 41.10

A2017WV-S-2X20P 38.00 47.10

A2017WV-S-2X22P 42.00 51.10

A2017WV-S-2X24P 46.00 55.10

A2017WV-S-2X25P 48.00 57.10

A2017WV-S-2X30P 58.00 67.10

A2017WV-S-2X32P 62.00 71.10

Unit:mm

*
