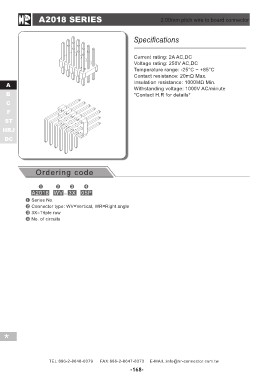

Page 184 - JOINT TECH
P. 184
A2018 SERIES 2.00mm pitch wire to board connector
A Specifications
B
C Current rating: 2A AC,DC
F Voltage rating: 250V AC,DC
ST Temperature range: -25°C ~ +85°C
HRJ Contact resistance: 20mΩ Max.
DC Insulation resistance: 1000MΩ Min.
Withstanding voltage: 1000V AC/minute
*Contact H.R for details*
Ordering code
A2018 WV - 3X 05P
Series No.
Connector type: WV=Vertical, WR=Right angle
3X=Triple row
No. of circuits
*
TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw
-168-
