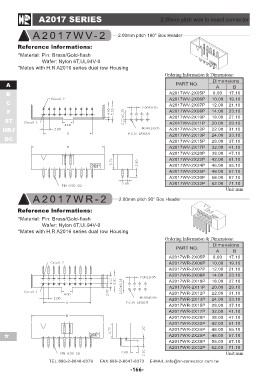

A2017 SERIES 2.00mm pitch wire to board connector

AA20081070WH IV - 2 2.00mm pitch 180° Box Header

Reference lnformations:

*Material: Pin: Brass/Gold-flash Ordering Information & Dimensions:
Wafer: Nylon 6T,UL94V-0
PART NO. Dimensions
*Mates with H.R A2016 series dual row Housing AB

A A2017WV-2X05P 8.00 17.10
B
C A2017WV-2X06P 10.00 19.10
F
ST A2017WV-2X07P 12.00 21.10
HRJ
DC A2017WV-2X08P 14.00 23.10

A2017WV-2X10P 18.00 27.10

A2017WV-2X11P 20.00 29.10

A2017WV-2X12P 22.00 31.10

A2017WV-2X13P 24.00 33.10

A2017WV-2X15P 28.00 37.10

A2017WV-2X17P 32.00 41.10

A2017WV-2X20P 38.00 47.10

A2017WV-2X22P 42.00 51.10

A2017WV-2X24P 46.00 55.10

A2017WV-2X25P 48.00 57.10

A2017WV-2X30P 58.00 67.10

A2017WV-2X32P 62.00 71.10

Unit:mm

AA20081070WH IR - 2 2.00mm pitch 90° Box Header

Reference lnformations:

*Material: Pin: Brass/Gold-flash Ordering Information & Dimensions:
Wafer: Nylon 6T,UL94V-0
PART NO. Dimensions
*Mates with H.R A2016 series dual row Housing AB

* A2017WR-2X05P 8.00 17.10

A2017WR-2X06P 10.00 19.10

A2017WR-2X07P 12.00 21.10

A2017WR-2X08P 14.00 23.10

A2017WR-2X10P 18.00 27.10

A2017WR-2X11P 20.00 29.10

A2017WR-2X12P 22.00 31.10

A2017WR-2X13P 24.00 33.10

A2017WR-2X15P 28.00 37.10

A2017WR-2X17P 32.00 41.10

A2017WR-2X20P 38.00 47.10

A2017WR-2X22P 42.00 51.10

A2017WR-2X24P 46.00 55.10

A2017WR-2X25P 48.00 57.10

A2017WR-2X30P 58.00 67.10

A2017WR-2X32P 62.00 71.10

Unit:mm

TEL:886-2-8648-0379 FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-166-
