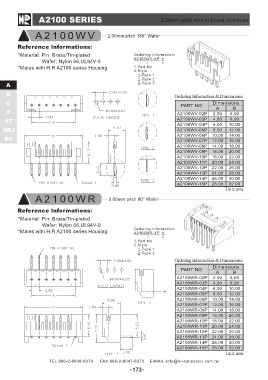

A2100 SERIES 2.00mm pitch wire to board connector

A 02 81 0 0 WH IV 2.00mm pitch 180° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated Ordering Information:
Wafer: Nylon 66,UL94V-0 A2100WV-XP ＊

*Mates with H.R A2100 series Housing 12

A 1.Part No.
2.Style:

1-Type 1
2-Type 2
3-Type 3

B Ordering Information & Dimensions:
C
F PART NO. Dimensions
ST AB
HRJ A2100WV-02P
DC A2100WV-03P 2.00 6.00
A2100WV-04P 4.00 8.00
A2100WV-05P 6.00 10.00
A2100WV-06P 8.00 12.00
A2100WV-07P 10.00 14.00
A2100WV-08P 12.00 16.00
A2100WV-09P 14.00 18.00
A2100WV-10P 16.00 20.00
A2100WV-11P 18.00 22.00
A2100WV-12P 20.00 24.00
A2100WV-13P 22.00 26.00
A2100WV-14P 24.00 28.00
A2100WV-15P 26.00 30.00
28.00 32.00

Unit:mm

A 20 18 0 0 HWIR 2.00mm pitch 90° Wafer

Reference lnformations:

*Material: Pin: Brass/Tin-plated Ordering Information:
Wafer: Nylon 66,UL94V-0 A2100WR-XP ＊

*Mates with H.R A2100 series Housing 12

1.Part No.
2.Style:

1-Type 1
2-Type 2

Ordering Information & Dimensions:

PART NO. Dimensions
A2100WR-02P AB

2.00 6.00

A2100WR-03P 4.00 8.00
A2100WR-04P 6.00 10.00

A2100WR-05P 8.00 12.00
A2100WR-06P 10.00 14.00

A2100WR-07P 12.00 16.00

A2100WR-08P 14.00 18.00
A2100WR-09P 16.00 20.00

A2100WR-10P 18.00 22.00

A2100WR-11P 20.00 24.00
A2100WR-12P 22.00 26.00

A2100WR-13P 24.00 28.00
A2100WR-14P 26.00 30.00

A2100WR-15P 28.00 32.00

Unit:mm
