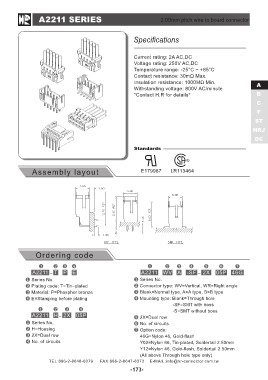

A2211 SERIES 2.00mm pitch wire to board connector
Assembly layout
Specifications

Current rating: 2A AC,DC A
Voltage rating: 250V AC,DC B
Temperature range: -25°C ~ +85°C C
Contact resistance: 30mΩ Max. F
Insulation resistance: 1000MΩ Min. ST
Withstanding voltage: 800V AC/minute HRJ
*Contact H.R for details* DC

Standards

E179987 ®

LR113464

Ordering code

A2211 - T P E A2211 WV A -SF - 2X 05P 46G

Series No. Series No.
Plating code: T=Tin–plated Connector type: WV=Vertical, WR=Right angle
Material: P=Phosphor bronze Blank=Normal type, A=A type, B=B type
E=Stamping before plating Mounting type: Blank=Through hole

A2211 H - 2X 05P -SF=SMT with boss
-S=SMT without boss
Series No. 2X=Dual row
H=Housing No. of circuits
2X=Dual row Option code:
No. of circuits 46G=Nylon 46, Gold-flash
Y02=Nylon 66, Tin-plated, Soldertail 2.50mm
TEL:886-2-8648-0379 Y12=Nylon 46, Gold-flash, Soldertail 2.50mm
(All above Through hole type only)
FAX:886-2-8647-8373 E-MAIL:info@hr-connector.com.tw

-173-
